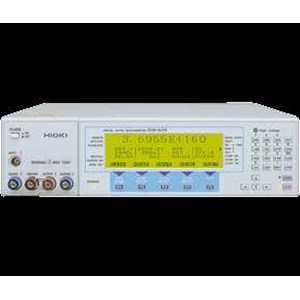

HIOKI 1-ch DSM-8104 Digital ultra-insulation / micro ammeter

- Measurement voltage : DC 0.1 - 1,000 V - Measurement range : 1 x 107 - 3 x 1016 © - Measures insulation resistance of capacitive/highly speed with high accuracy - High resolution current measurements of 0.1 fA - Histogram display of selected results - GP-IB, RS-232, Handler interface equipped as standard - optional LAN interface also available - Full range of electrodes to suit all types of measurements Basic specifications : Measurement range DC Measurement Capability : Current Measurement Measurement Range Name 10pA 100pA 1nA 10nA 100nA 1µA 10µA 100µA Resistance Measurement Capability (1,000V measure voltage) : Resistance Measurement Range of Measurement 1x1014 - 3x1016 (Open-circuit) 1x1013 - 1x1014 1x1012 - 1x1013 1x1011 - 1x1012 1x1010 - 1x1011 1x109 - 1x1010 1x108 - 1x109 1x105 - 1x107 Measurement Time Setting : Delay : 0 - 9,999ms Sampling Time : 2 - 300ms Voltage Generator Setting Voltage Accuracy and Resolution Setting Voltage Range 0.1 to 250.0V 251 to 1,000V Current Limiter : Setting Voltage Range 0.1 to 250.0V 251 to 1,000V Measurement Check Function : Voltage Monitor, Contact Check Function, Other Function :Comparator Measurement, Deviation/Percentage Measurement, Surface/Volume Resistivity Measurement Interface GP-IB, RS-232C, LAN (Option), Handler Interface Power Supply : AC100V (115V, 220V, 240V factory option), ± 10%50/60Hz Approx. 55VA Dimension, mass : Approx. 332W x 89(H x 450D mm Approx. 6.7kg Accessories : Power cord (1) (Measurement leads are optional.)
